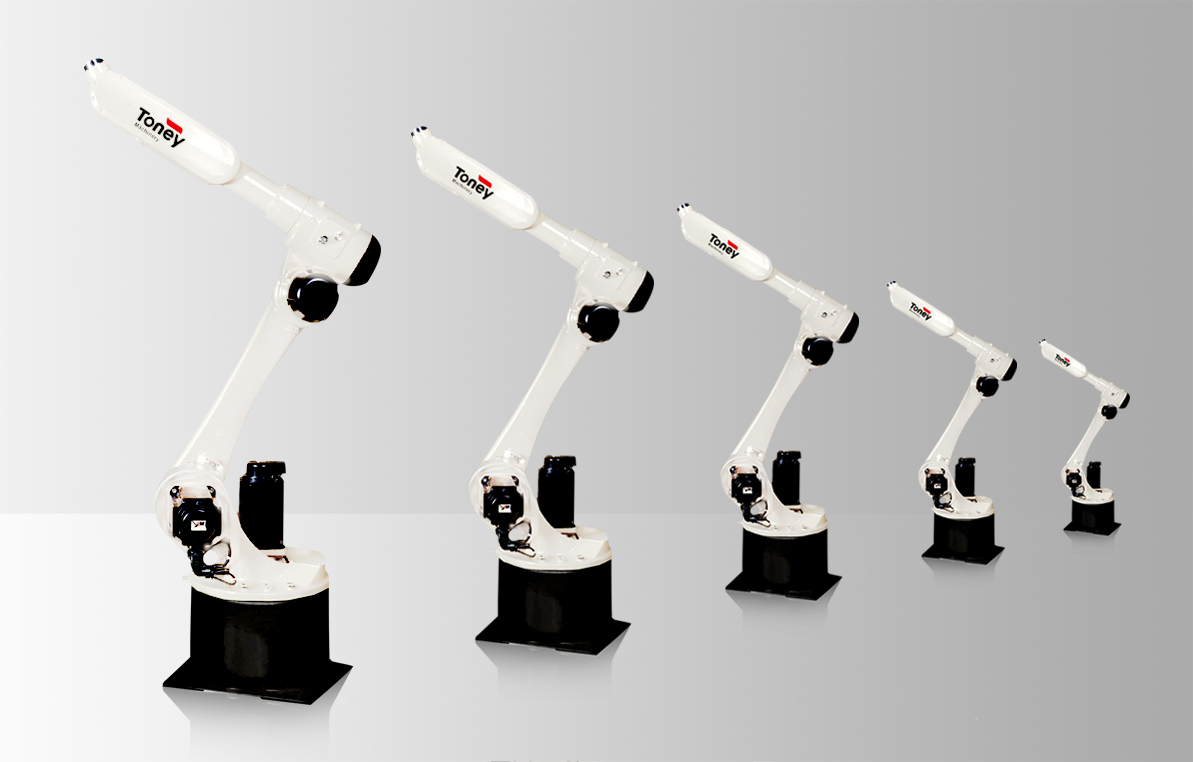

TYT1600-C-6
TYT1600-C-6’s terminal payload is10Kg.It has high speed, repeated positioning accuracy and reliability.Its operation is easy,Its lengthened track makes it applicable in fixtures and workpieces' handling.It can be used in glaze painting,polishing,handling,assembling and etc.
SPECIFICATIONS
MODEL/PROJECT
TYT1600-C-6
NUMBER OF AXES
6axes
PAYLOAD
10kg
POSITION REPEAT ACCURACY
±0.05mm
MAX.SPEED
axisJ1
axisJ2
axisJ3
axisJ4
axisJ5
axisJ6
170°/sec
160°/sec
180°/sec
330°/sec
360°/sec
600°/sec
MAX.OPERATING AREA
axisJ1
axisJ2
axisJ3
axisJ4
axisJ5
axisJ6
±165°
±80°/-135°
±165°/-75°
±180°
±130°
±360°
MAXIMUM REACH
1640mm
ALLOWABLE LOAD TORQUE
axisJ4
axisJ5
axisJ6
20N.m
20N.m
10N.m
ALLOWABLE INERTIA MOMENT
axisJ4
axisJ5
axisJ6
0.625kg.㎡
0.625kg.㎡
0.2kg.㎡
ROBOT INBREAKING PROTECTION
IP65(Arm IP67)
ELECTRICAL CABINET INBREAKING PROTECTION
IP43
AMBIENT TEMPERATURE
0-45℃
INSTALLATION PARAMETERS
Floor mounted、Rail mounted、Ceiling mounted
ROBOT MASS
190kg
FUNCTION
Material handing、Handing
